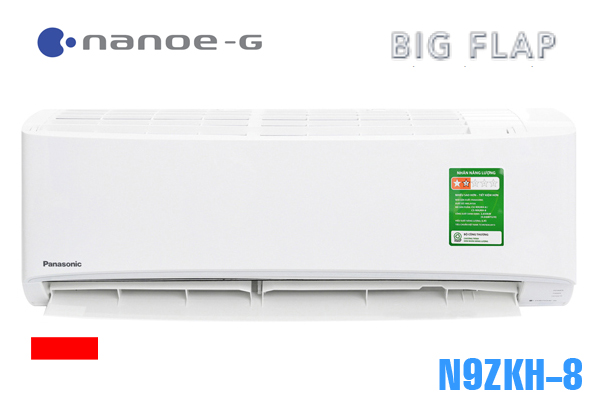

Panasonic 9,000 BTU N9ZKH-8 single-direction air conditioner

SPECIFICATIONS Technical specifications of Panasonic 9,000 BTU single-direction air conditioner N9ZKH-8 Panasonic single-direction air conditioner [50hz] CS-N9ZKH-8 [CS-N9ZKH-8] Cooling capacity [smallest-largest] MCU 2.65 [smallest-largest] Btu/h 9.04 CSPF 3.47 EER [smallest-largest] Btu/hW 11.89 [smallest-largest] W/W 3.49 Electrical specifications Voltage V 220 Current intensity A 3.6 Electrical power (minimum – maximum) W 760 Dehumidification L/h 1.6 Pt/h 3.4 Air flow Indoor unit m 3 /min (ft 3 /min) 10.5 (371) Outdoor unit m 3 /min (ft 3 /min) 22.4 (790) Noise level Indoor unit (C/TB/T) dB(A) 37/26 Outdoor unit (C) dB(A) 47 Size High no 290 (511) bio 11-7/16 (20-1/8) Wide no 799 (650) bio 31-15/32 (25-19/32) Deep no 197 (230) bio 7-3/4 (9-1/16) Mass Indoor unit kg (lb) 8 (18) Outdoor unit kg (lb) 22 (49) Pipe diameter Loose tube no Ø 6.35 bio 1/4 Gas pipe no 9.52 bio 3/8 Pipeline limits Standard length m 7.5 Maximum length m 20 Maximum elevation difference m 15 Additional gas refill * g/m 10 Power supply Indoor unit
